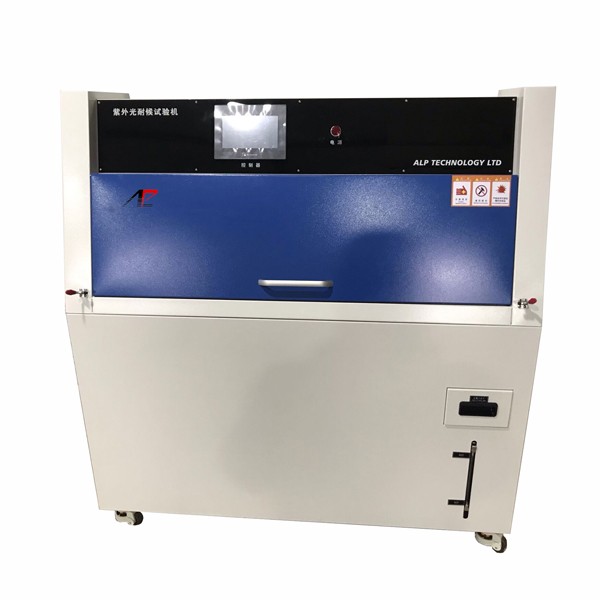

UV Test Chamber

This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.

Chamber Structure

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel

plate sprayed with plastic.

The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

Control System

Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating.

The radiometer probe is fixed so as to avoid the frequent installation and disassembly.

The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.

The radiation intensity is not more than 50W/m2.

The illumination and condensation can be controlled independently or alternatingly and circularly.

Specs & Technical Parameters

Model

UV-P

Workroom Dimensions (cm)

45*117*50

Exterior Dimensions (cm)

58*128*135

Power

4.0(KW)

Temperature Range

RT+10℃~70℃

Humidity Range

≥95％R.H

Lamp Spacing

35mm

Distance between Sample and Lamp

50mm

Quantity of Samples Supported

150mm (L) × 75mm (W), about 40 pcs

UV Wavelength

290nm~400nm---UV-A, UV-B, UV-C

(Subject to the specifications in order)

Lamp Power

40W
