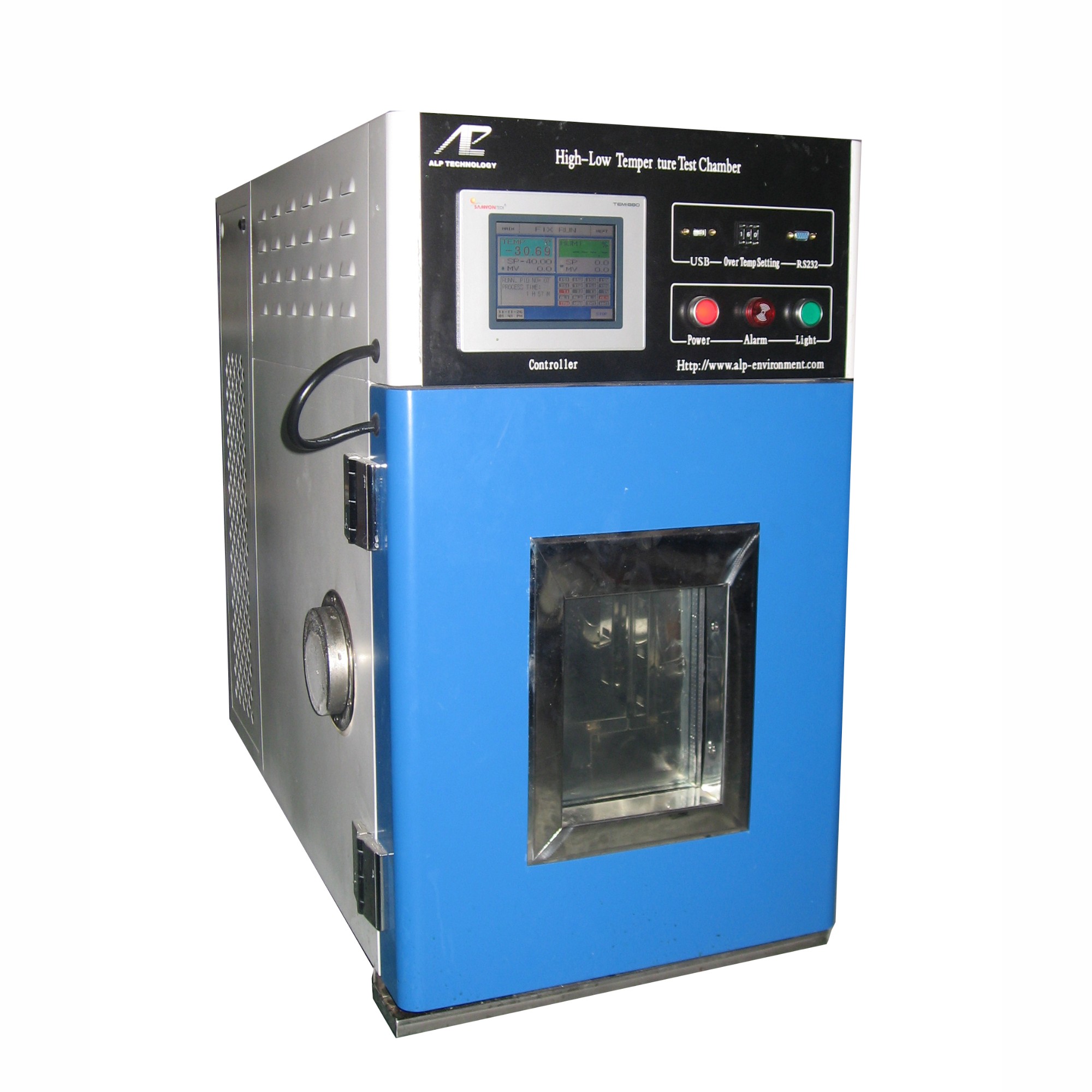

Bench-Top Test Chamber

Application

Used for reliability test and environmental test of dust-free material, electronic or electric product or component, military product. Conform to National Standard and Military Standard.

Working environment

Ambient temperature: 10℃～35℃

Relative humidity: ≤85%RH

Power source: AC220±10%V, 50--60Hz, single phase + GND

Power: 2.5KW

Features

1.      Material: galvanized steel plate, and SUS304 stainless steel plate.

2.      Heat-insulating material: hard polyurethane foam and glass fiber, with enough thickness.

3.      Parts connection: weld of seamless tungsten electrode arc, with watertight treatment.

4.      Air adjustment system: forced circulation with centrifugal fan, heat with nichrome heater and cooled with compressor.

5.      Refrigeration system: world famous brand totally closed compressor, eco-friendly refrigerant R404A

Controller: Touch screen programmable controller

Running with constant value or program; Displays data of setting temp., actual temp., total running time, running time of segment, residual time of segment, heating condition, calendar time; Automatically choose working status of compressor according to test terms.
